The Professional and Compact Option

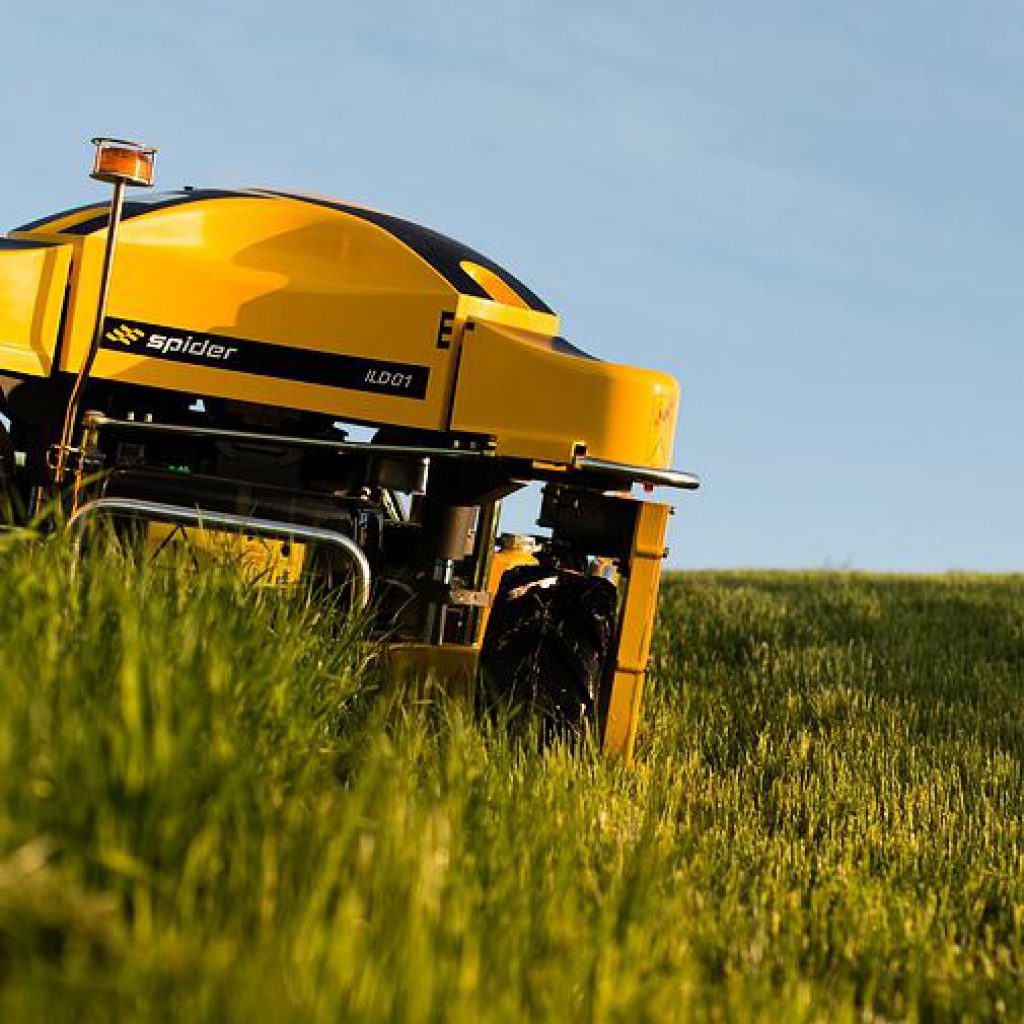

Spider ILD01
  • The SPIDER ILD01 mower is designed for fully professional use. It can be used to mow sloping and indented terrains and areas with restricted access for maneuvering or where lightweight mowers are required. It is suitable for extensive and intensive mowing of medium-large areas.

Productivity

1x = 5x

With an areal coverage up to 3,000 m2/hour, the SPIDER ILD01 can be a match for performance of 5 brush cutters at substantially lower operating costs.

Due to absence of physically demanding work the daily productivity is much higher compared to the manually operated machines as no compulsory work breaks are needed and there is no slowdown due to exhaustion.

Quality of Cut

The unique mowing deck is based on high-quality mulching and therefore no collection of grass is needed. Cut grass is evenly spread to the grass roots and serves as a valuable source of nutrients for further growth.

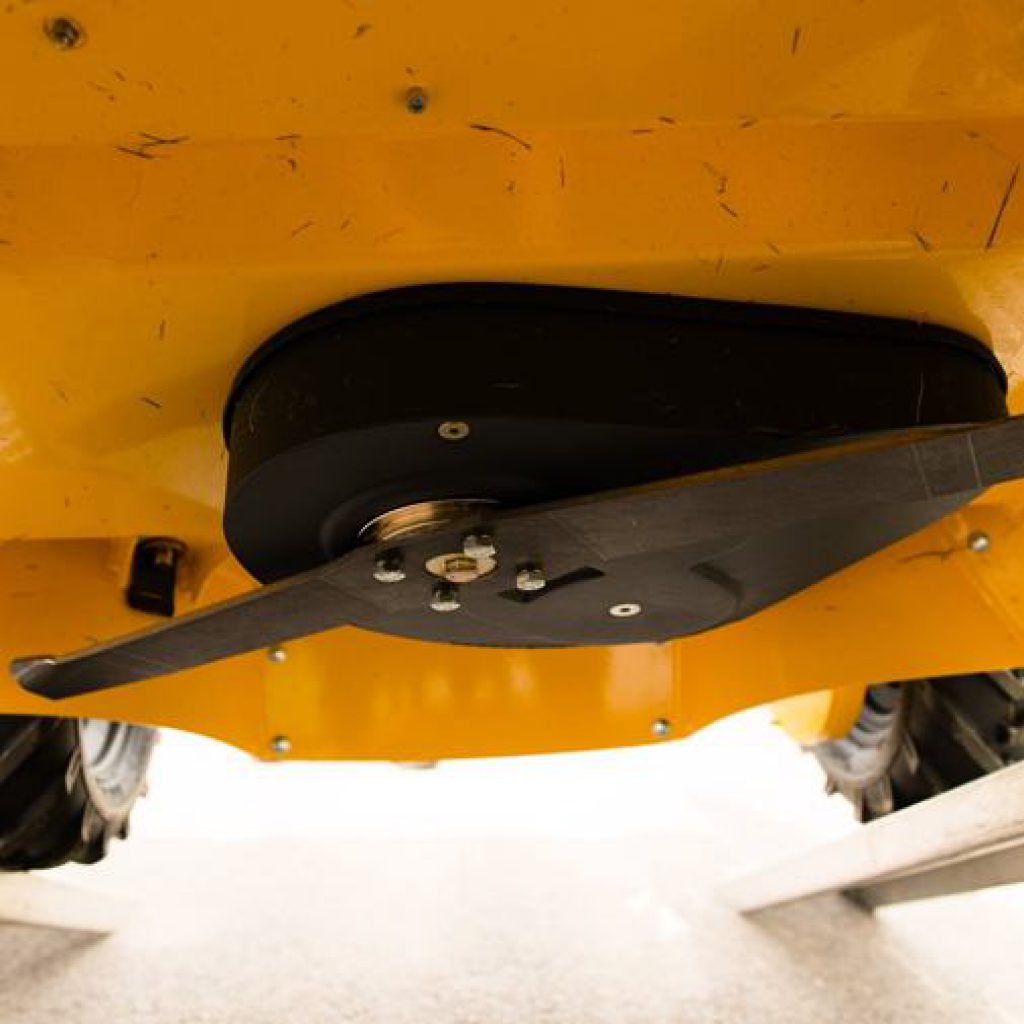

The SPIDER ILD01 is equipped with a one-blade mowing mechanism that ensures perfect mowing and precise mulching. The blade is made of special alloys that guarantee strength and sufficient flexibility in case of accidental impact on a fixed obstacle.

For even better mulching effect ask your SPIDER reseller about the mulching ring.

Versatility

SPIDER mowers are exceptional pieces of equipment as they can be used for the mowing of fine and short park grass as well as for rough mowing of heavy brush – all in the same setup! They can work on flat areas or on steepest slopes. One SPIDER mower can replace multiple specialized mowers.

Safety First

You would hardly be able to find a safer mower in the market. The remote control allows the operator to stay away from the working area of the mower, away from noise and vibrations

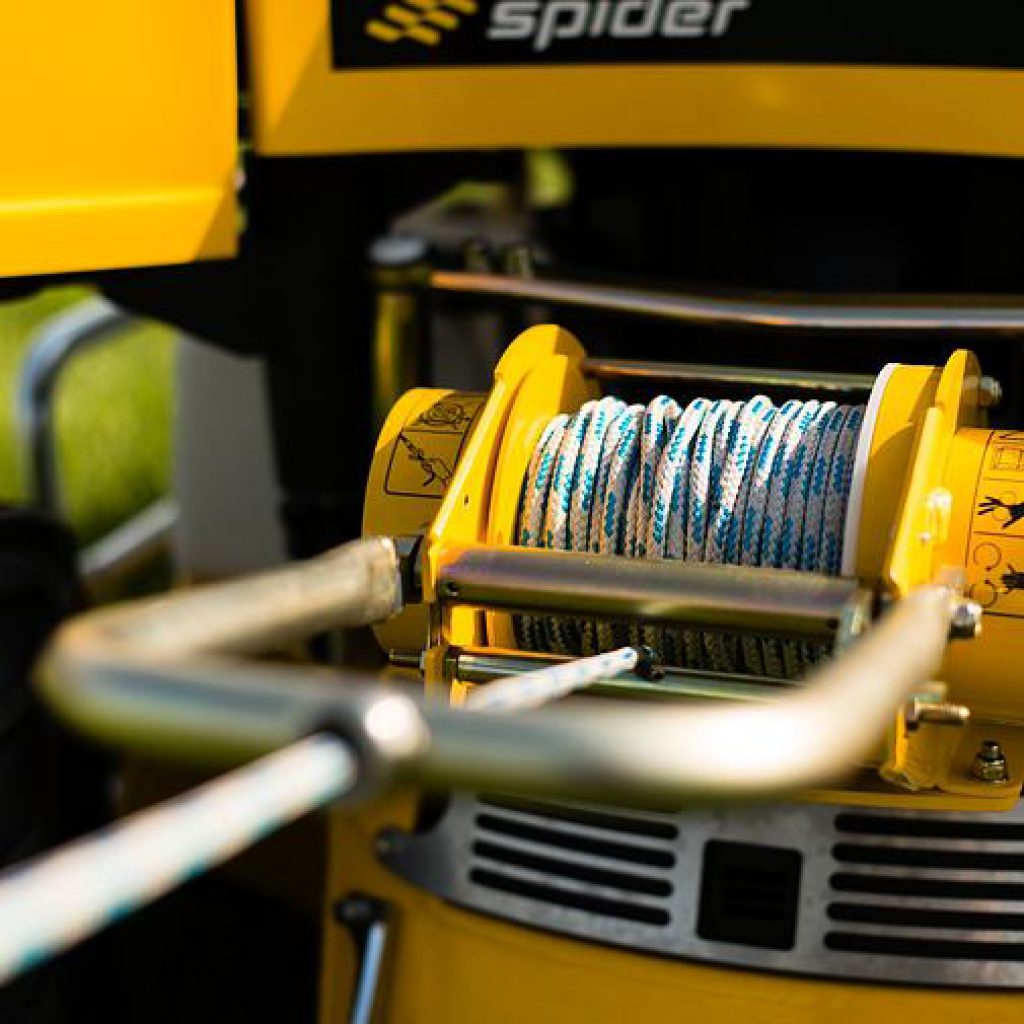

Safety can be further enhanced by using the hydraulic stabilizing winch, which stabilizes the machine on the steepest slopes. SPIDER mowers work safely in the toughest conditions..

Technical Information

Drive Unit

Kawasaki FS541V – 15 HP

Cutting Width

80 cm

Cutting Height

6-11 cm / 3-8 cm

Dimensions

135.6 x 120 x 91.3 cm

Speed

0-6 km/h

Weight

288 kg / 635 lbs

Basic Information

Features

Parameters

Drive Unit

Engine Type Kawasaki FS541V
Performance 15 HP 18HP gross, 11.3 kW
Displacement 603 cm
Ignition Electronic
Fuel Tank 12 liter
Fuel Type premium, unleaded gasoline

Drive System

Gear Hydrostatic
Oil Tank 6 l
Speed 0-6 km/h
Steering 60°, 4 wheels
Wheels 16x 6.50-8

Cutting System

Cutting Width 80 cm
Cutting Height 6 – 11 cm / 3 – 8 cm
Clutch electromagnetic

Performance and Consumption

Performance up to 3000 m2/h
Consumption 2.5 – 3.5 l/h
Climbing Ability 40°(55° with the winch)
Dimensions 135.6 x 120 x 91.3 cm
Weight 288 kg / 635 lbs
Download
  • Catalog
  • Spider ILD01 Product Sheet

Drive Unit

4-cycle Kawasaki engine provides optimum productivity and maximum payback even in the toughest terrain due to dual element air filter and powerful lubrication system.

Performance 11.3 kW (15 HP) / 3600 RPM
Oil Tank 2.0 liter
Displacement 603 cm
Number of Cylinders 2

Remote Control

The remote control provides comfort, safety and precise control. Range of the remote control is 100 m.

Following functions can be controlled remotely:

  • starting and stopping the engine
  • setting the speed mode (turtle/rabbit)
  • turning on and off the mowing device
  • adjusting the cutting height
  • changing the speed and direction
  • wheel rotation (360°)
  • activation of stabilizing winch
  • emergency shutdown of the entire system

Drive System

The hydrostatic drive system ensures fluent speed regulation while preserving optimum management of the combustion engine. Sensitive speed regulation and steering result in precise control of the mower, excellent operation efficiency and high safety.

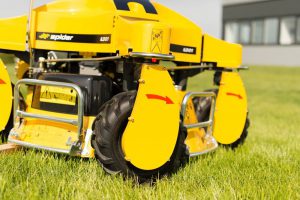

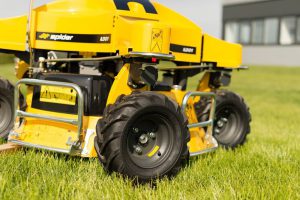

Dance Step

The patented drive system „Dance step“ together with constant 4-wheel drive ensure fantastic maneuverability in all terrains, great climbing ability and gentle treatment of grass even in wet or soft terrain.

Easy Transport

To transport SPIDER mower you can use a special car trailer containing integrated pull-out ramps and a safety system securing the mower from motion. It can be easily and quickly transported by most of the utility vans as well.

The remote control system together with the special trailer simplify the physical manipulation. Machine can be easily operated even by disabled individuals.

Gallery
